Apron Feeder Mining
- Warranty:1year;
- Applicable Industries:Energy & Mining, Advertising Company
- Warranty of core components:1 Year
- Core Components:Gearbox, Motor
- Place of Origin:Henan, China
- Condition:New
- Brand Name:ODF
- Product Name:Apron Feeder Mining
- Application:Working Line
- Material:Carbon Steel
- Capacity:1-1000 Ton
- Color:Customized Color
- Advantage:High Efficiency
- After-sales Service Provided:Online Support
- Brand:ODF
- Running Speed:0-20m/min
- Certification:CE ISO

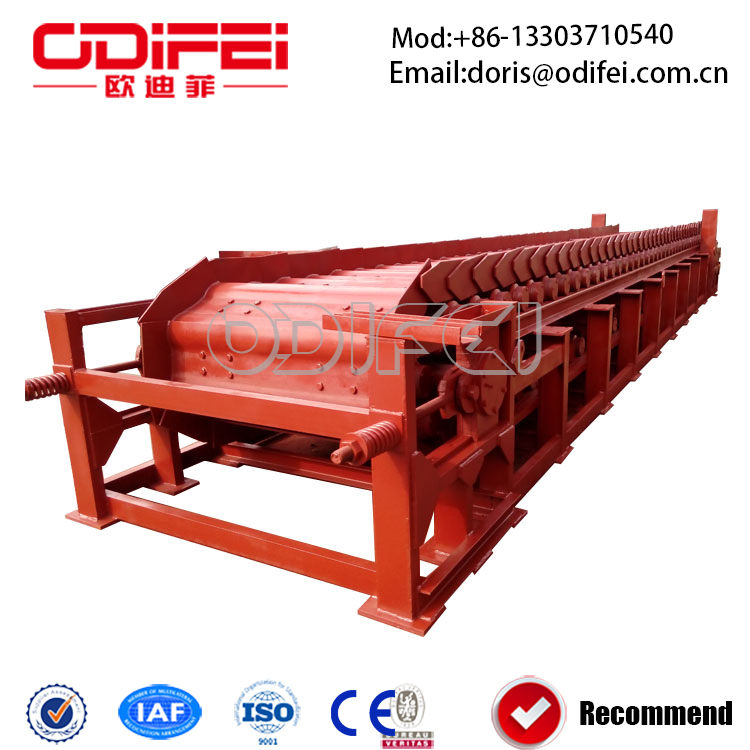

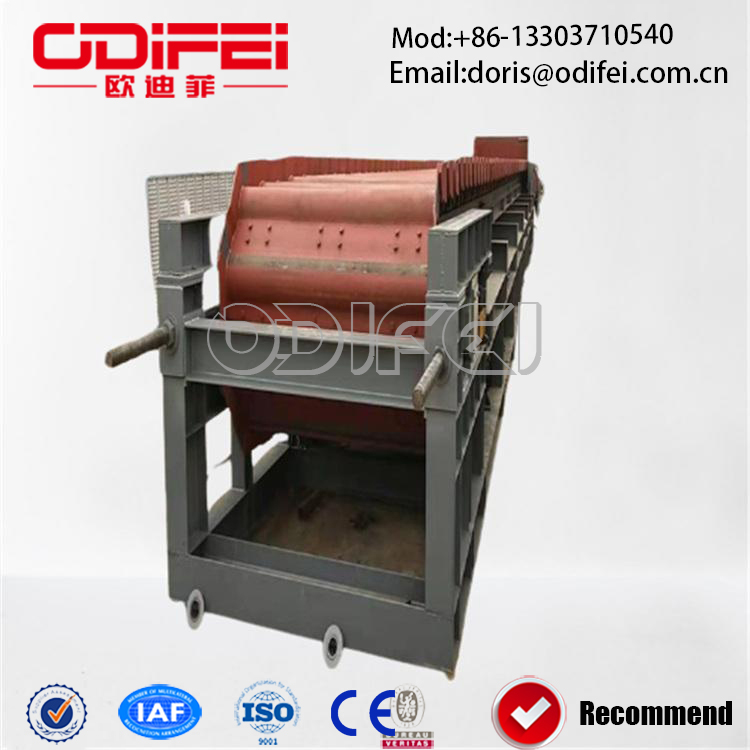

Apron Feeder Mining
What is the working principle of Apron Feeder Mining?
The Apron Feeder Mining is a conveying device that uses a closed, circulating chain as a traction member, and uses flat plates, corrugated plates, and trough or box-shaped components that are connected or overlapped as load-bearing components. The traction member and the load-bearing member form a chain plate combination device; the traction chain can be connected to the load-bearing member through chain accessories, or it can be directly connected to the load-bearing member. The load-bearing member itself is supported and supported by rollers or rollers fixed on the bracket. The slab conveyor has no special requirements for material particle size, block shape, and working environment. The weight of a single material (piece) can reach 70-120kg, the conveyor length can reach 40-80 meters, and a 25° inclination angle is allowed. Slab conveyors are divided into light, medium, and heavy types.

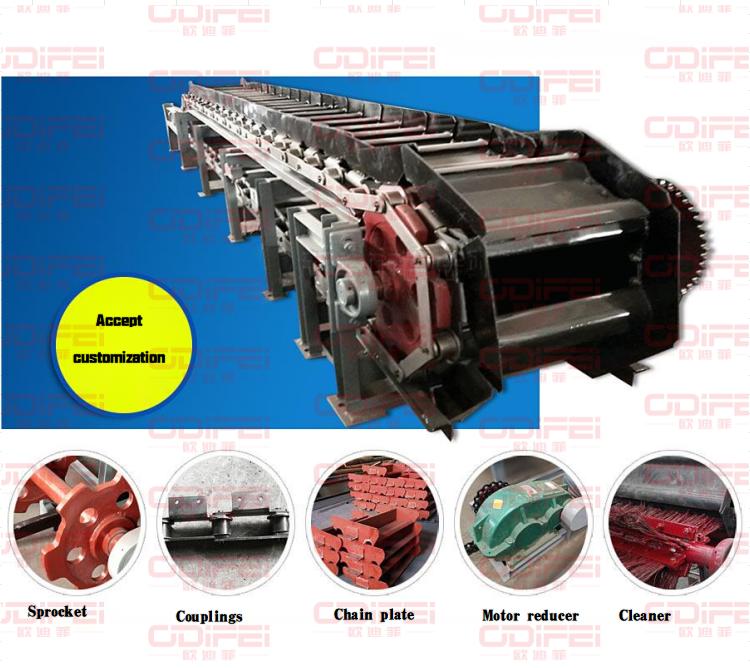

What is the structure of the Apron Feeder Mining?
1. Head drive device
It is composed of an electric motor, a reducer, a transmission device and a driving sprocket device. The power is transmitted to the main shaft by the driving device through a pair of sleeve roller sprockets, which in turn drives the slot plate to run. In order to meet the needs of different conveying speeds, the running speed of the slot plate can be changed by replacing the gear ratio of the driving sprocket. The driving sprocket device uses two sprockets with 6 teeth to drive two sheet-type traction chains and the slot plate to run along the guide rail.
2. Tail wheel device
The redirection part of the chain plate of the machine, which consists of a tail wheel shaft, two tail wheels and bearings.
3. Tensioning device
The tensioning device adopts a spiral tensioning method to adjust the tightness of the traction chain.
4. Chain plate part
It is composed of a traction chain and a slot plate. The traction chain adopts an impact-resistant, stable and reliable sheet-type traction chain. A roller is installed in the middle of the inner chain plate, rolling on the track to reduce friction resistance and wear. The slot plate is fastened to the traction chain with bolts.
5. Frame
The large-scale cast coal slab conveyor for mining is composed of a head frame, a tail frame and an intermediate frame. It is welded with channel steel, angle steel and reinforcing steel plates. There are four tracks in the middle of the frame for rollers to run, which are made of light rail.
What is the application of the Apron Feeder Mining?

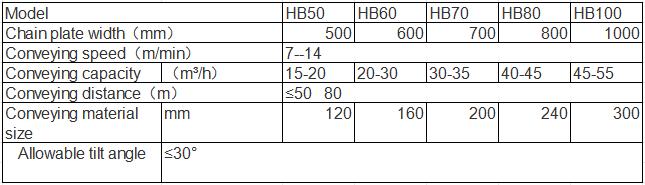

Parameter Table of the Apron Feeder Mining

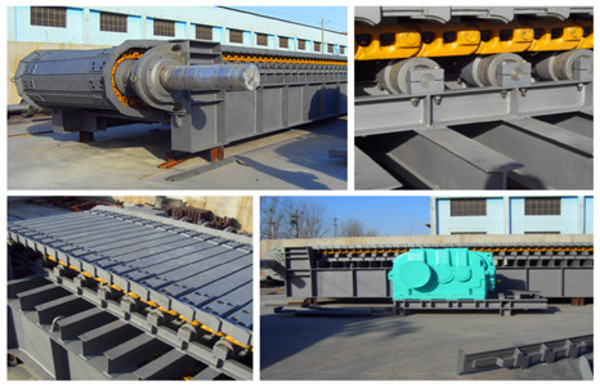

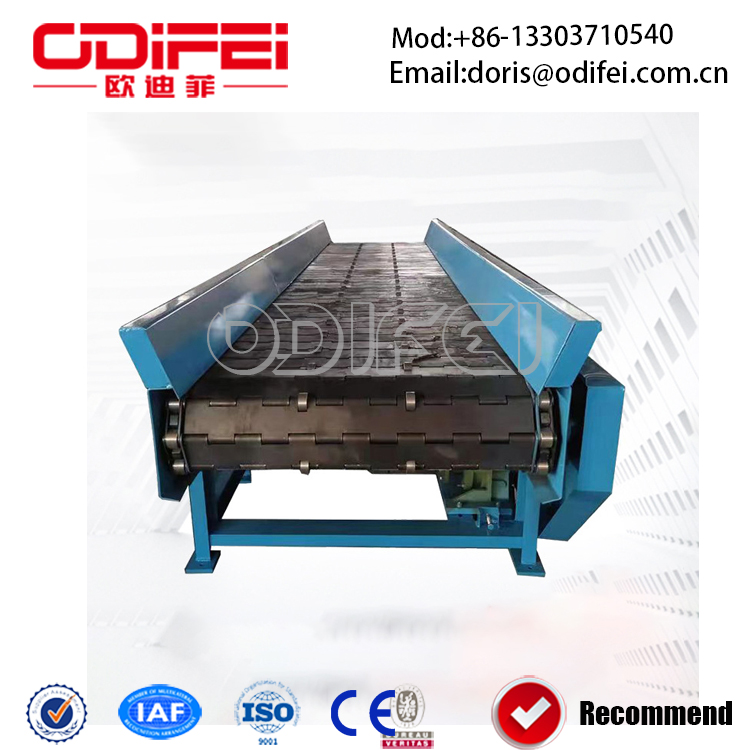

Picture of the Apron Feeder Mining
